Product Description

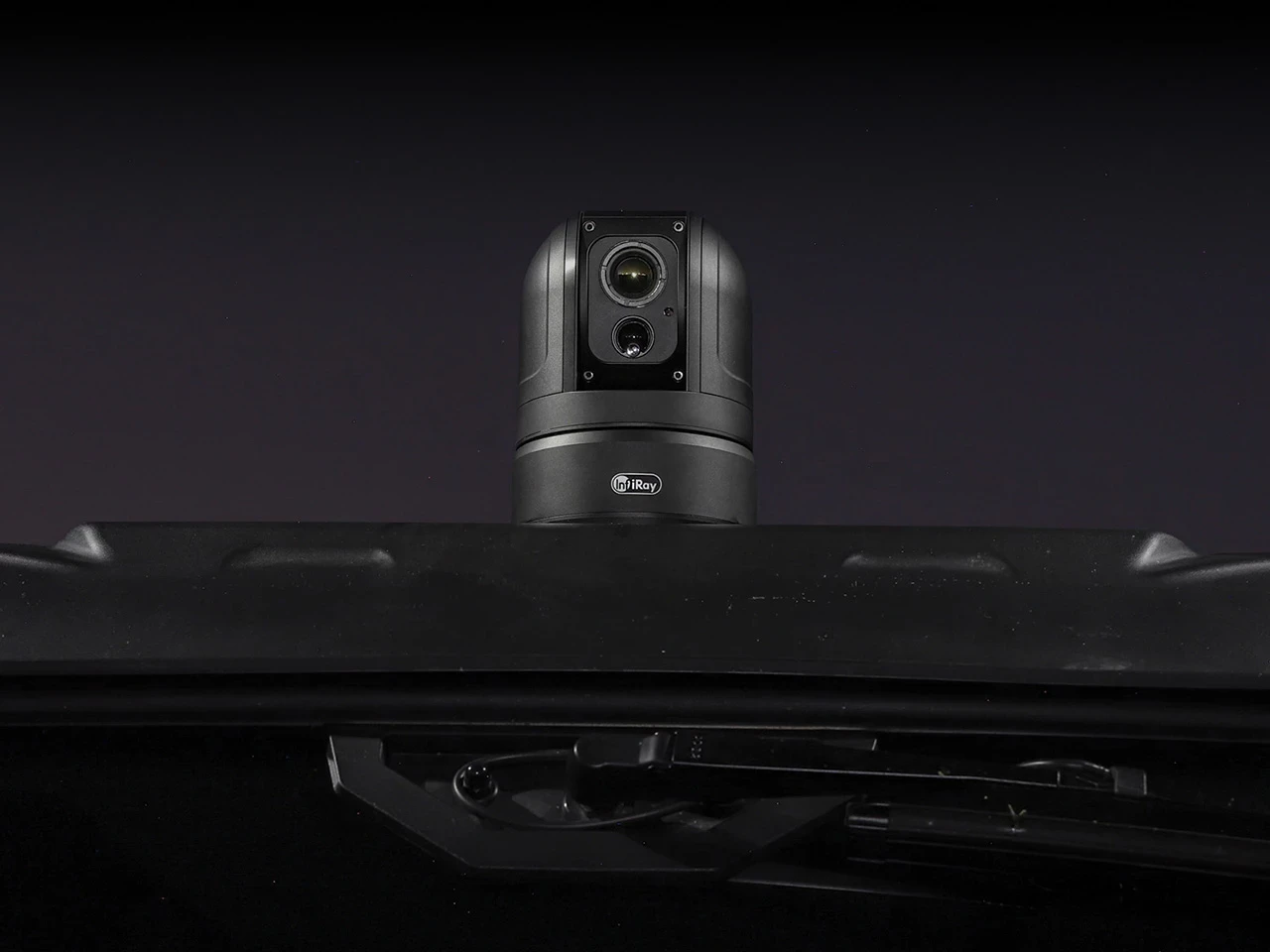

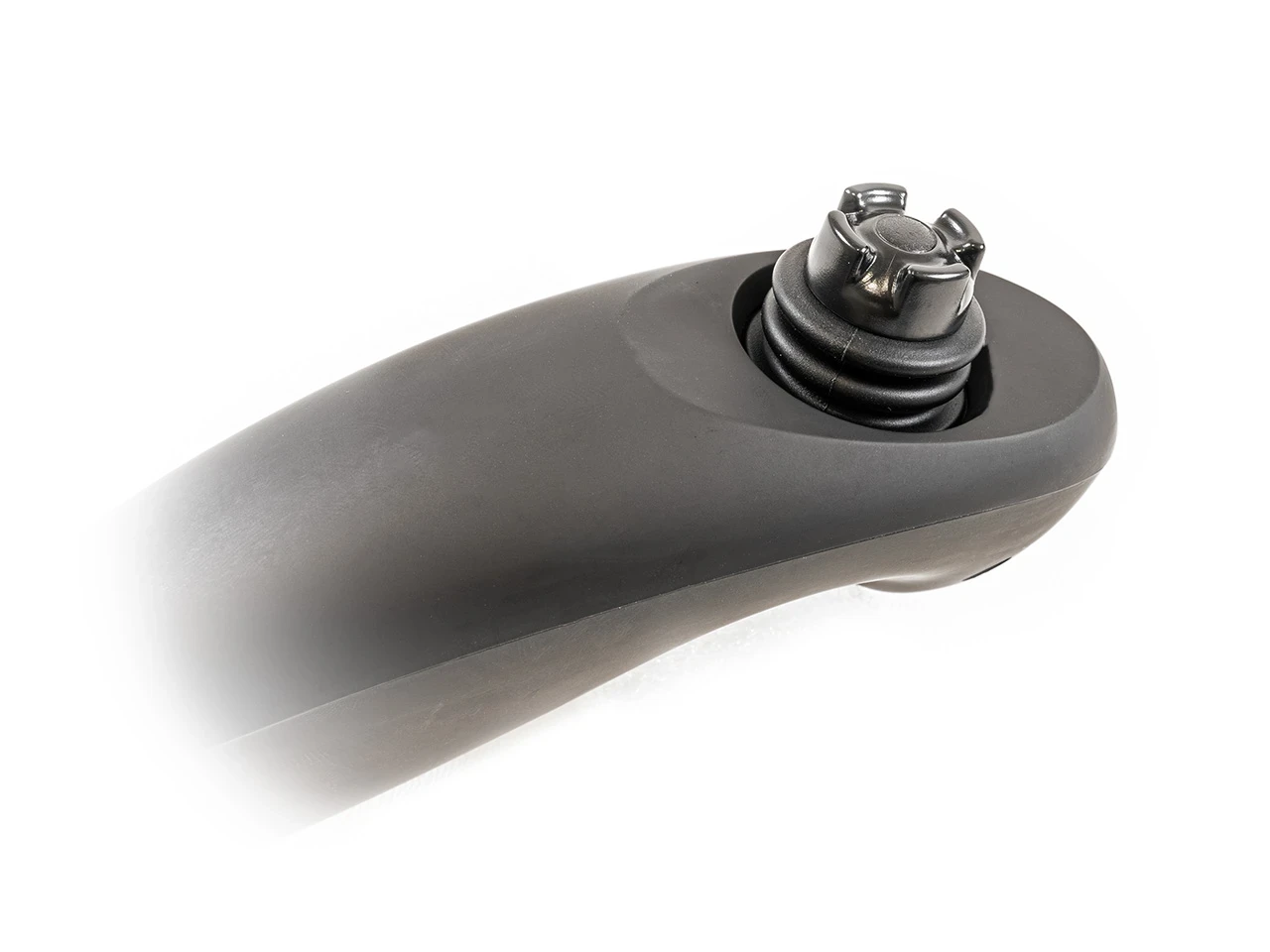

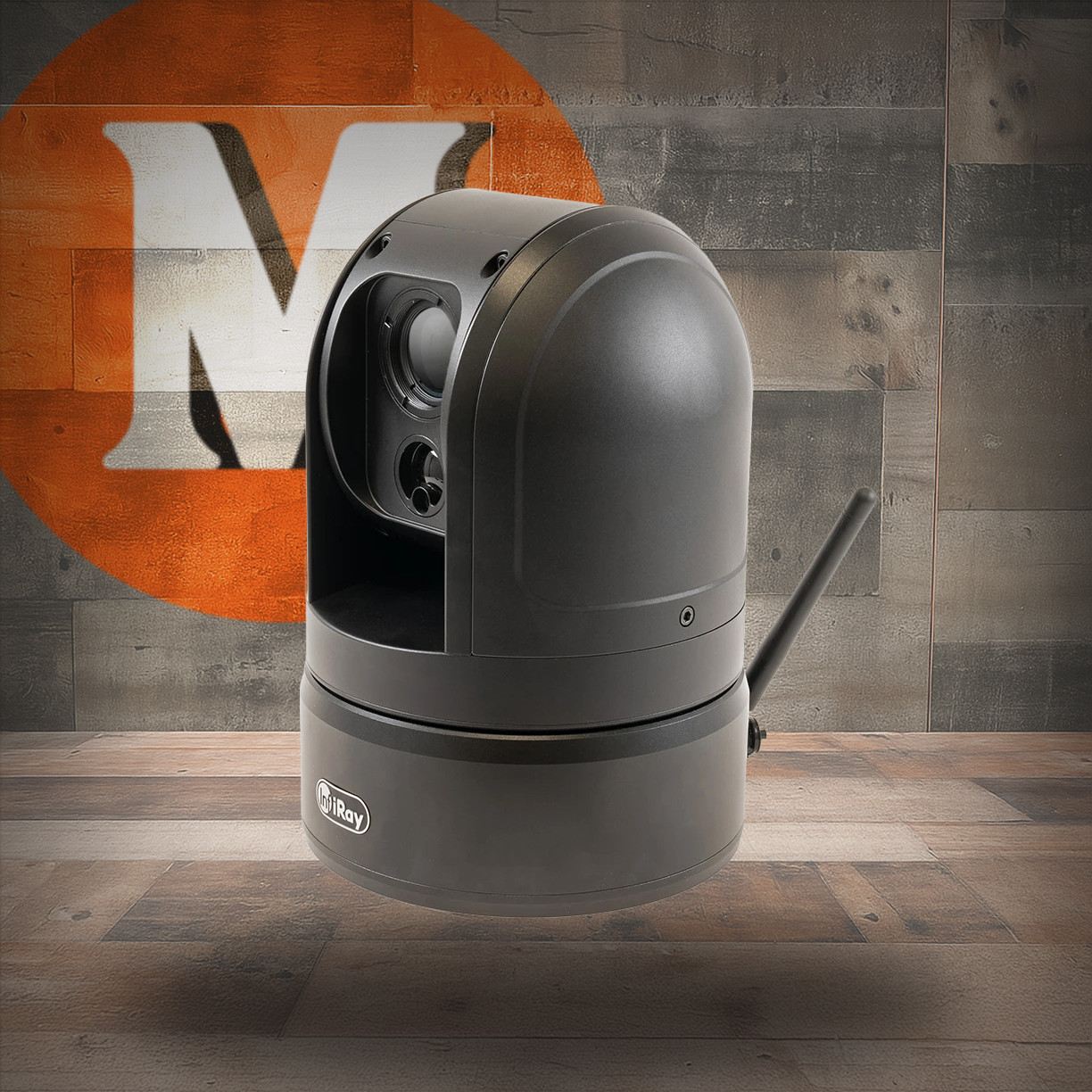

The M6 thermal PTZ camera system is designed to enhance scanning capabilities while on-board a vehicle and is over-built to maintain performance through years of use and exposure to the elements. Our mission is simple—to create the highest quality thermal PTZ systems available for night hunters. The M6 is packed full of useful features including video recording, gyro stabilization, and mobile app connectivity with wireless streaming. The new M6 is includes an integrated laser pointer and laser rangefinder for increased situational awareness. The M6 kit has everything you need to add thermal to any vehicle including power and signal wiring harnesses and an easy-to-use wired thumbstick controller. In just a few minutes you can upgrade any vehicle with powerful thermal imaging technology.
| Objective Focal Length: | 25mm |
| Device Technology: | Thermal Imaging |
| Sensor Resolution: | 640×512 |
| Sensor Pixel Size: | 12μm |
| Sensor Frame Rate: | 50hz |
| Digital Magnification: | 4X |
| Optical Magnification: | 1X |
| Objective Diameter: | 25mm |
| Detection Range: | 1375 Yards |
| Onboard Recording: | Yes |
| Objective F#: | 1.0 |
| SKU: | IRAY-M6T25 |
| UPC: | 850048751156 |
| Datasheet: | Download |
| Manual: | Download |
Optics
- Objective Focal Length 25mm
- Digital Magnification 4X
- Optical Magnification 1X
- Objective Diameter 25mm
- Detection Range 1375 Yards
- Objective F# 1.0
- Objective Lens Material Germanium
Features & Performance
- Wifi Yes
- Onboard Recording Yes
- Mobile App Yes
- User-Updatable Firmware Yes
- External Power Source DC 12V
- Warranty 5 Years
- Country of Manufacture China
Environmental Specifications
- Ingress Protection IP56
Physical
- Weight 70.5 Oz.
- Housing Material Aluminum
Sensor Specifications
- Sensor Type InfiRay MICRO II
- Device Technology Thermal Imaging
- Sensor Resolution 640×512
- Sensor Pixel Size 12μm
- Sensor Frame Rate 50hz
- Thermal Sensitivity <50mk
