Product Description

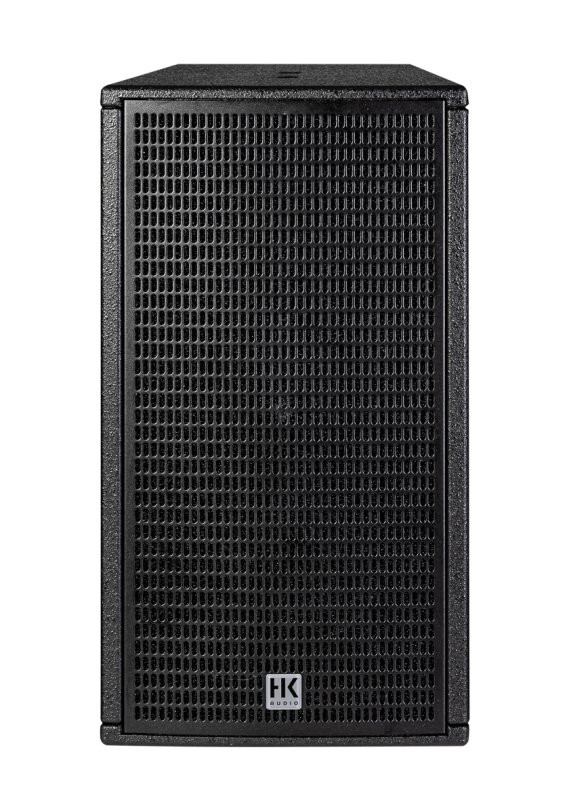

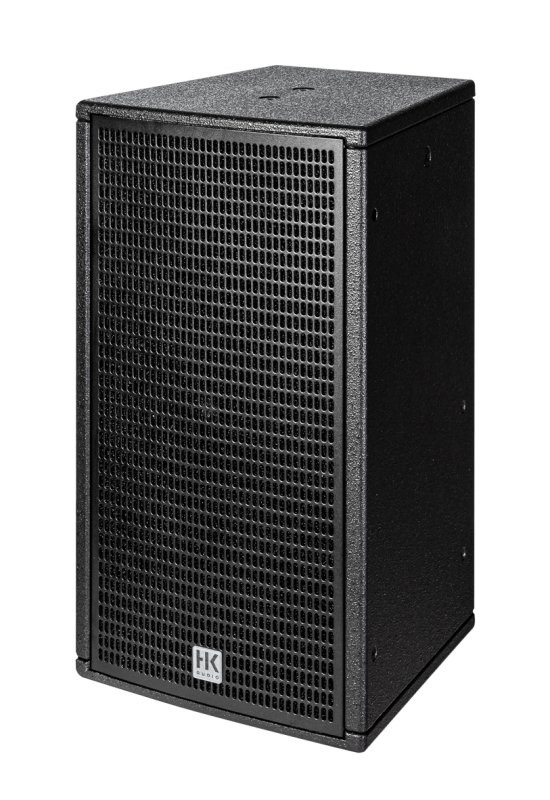

HK FINEO-FO-8-BLK 400 Watt 8" Install Speaker Black (FINEO-FO-8-BLK-U)
The compact FINEO FO?8 is designed as a passive 2-way system and has a modern, ultra-slim and space-saving trapezoidal cabinet.
With its 8? cone speaker with 1.75? voice coil, the FO?8 provides a solid foundation for speech or near-field sound reinforcement and balanced mids in combination with the S112, S118 or S218 subwoofers.
Key Features
- Color: Jet black (RAL 9005), signal white (RAL 9003) or special color according to catalog
- SKU / Model: FINEO-FO-8-BLK-U
- Nominal impedance (According to EN 60268-5 (minimum value not less than 80% of nominal value)): 8 ohms
- Max.
- SPL average (1 m, 10 % THD @ 80 Hz - 20 kHz, (EN 60268-21), full space): 116 dB
- Filter specifications in tabular form for frequency response equalization Without limiter specifications: BiampTesira BSS Lab.gruppen Lake Linea Research Marani Powersoft QSC Q-SYS Symetrix
- The compact FINEO FO?8 is designed as a passive 2-way system and has a modern, ultra-slim and space-saving trapezoidal cabinet.
- With its 8? cone speaker with 1.75? voice coil, the FO?8 provides a solid foundation for speech or near-field sound reinforcement and balanced mids in combination with the S112, S118 or S218 subwoofers.
- The BEM-optimized constant directivity horn with the powerful 1? compression driver, which is well-known from the CONTOUR X series, specially developed for the rough and tumble of touring, has a dispersion angle of 80° x 60° and thus delivers a large sound area without causing excessive acoustic excitation on the walls or ceilings.
- The horn can be rotated, meaning that the FO?8 can be used upright, on its side or with altered horizontal and vertical dispersion.
- The compact speaker can therefore always be positioned optimally, even in small or architecturally complex rooms.
Specifications
General
- Product Detail: HK Audio HK FINEO-FO-8-BLK 400 Watt 8" Install Speaker Black
- Color: Jet black (RAL 9005), signal white (RAL 9003) or special color according to catalog
- Brand: HK Audio
- SKU / Model: FINEO-FO-8-BLK-U
Power & Performance
- Power handling RMS: 200 W
- Power handling program: 400 W
- Power handling peak: 800 W
- Sensitivity 1 W/1 m (80 Hz - 20 kHz, full space): 91 dB
Additional Details
- Concept: Passive 2-way mid/high unit
- Cabinet principle: Bass reflex
- Max. SPL peak (1 m, 10 % THD @ 3.3 kHz, full space: 119 dB
- Crossover frequency: 3.2 kHz
- Frequency range -6 dB: 72 Hz - 20 kHz
- Frequency range -10 dB: 69 Hz - 20 kHz
- Dispersion angle -6 dB (horizontal x vertical): 80° x 60°
- Ball impact resistance (DIN 18032-3): certified (MPA University Stuttgart)
- IP protection class (EN 60529): not specified
- Low-/mid frequency: 1x 8" Sica cone speaker with ferrite magnet and 1.75" voice coil
- High frequency: 1 x 1" Sica compression driver with ferrite magnet and 1" voice coil
- Crossover: High pass: 18 dB/octave, low pass: 18 dB/octave
- High frequency protection circuit: Self-healing PTC fuse
- Horn: BEM-optimized constant directivity horn, rotatable
- Input : 1 x NL4 Speakon
- Output/parallel output: 1 x NL4 Speakon
- Pin assignment: 1+/- (input/parallel output), 2+/- (wired through)
- Lab.Gruppen: IPX
- LEA Professional: Sharkware
- Mounting points: 2 x M8 lateral, 2 x M8 bottom/lid, 1 x M8 rear, 4 x M4 rear
- Cabinet material: MDF
- Cabinet surface: 1-component acrylic enamel
- Front grille: Steel front grille with anticorrosive coating, backed acoustic foam
- Optional accessories: U-bracket, screw-on flange SF-35, swivel and tilt wall mount (size S for VESA MIS-D, 100 x 100 mm), AP-8
- Rear hole pattern: VESA MIS-D (100 x 100 mm
- The BEM-optimized constant directivity horn with the powerful 1? compression driver, which is well-known from the CONTOUR X series, specially developed for the rough and tumble of touring, has a dispersion angle of 80° x 60° and thus delivers a large sound area without causing excessive acoustic excitation on the walls or ceilings.
- The horn can be rotated, meaning that the FO?8 can be used upright, on its side or with altered horizontal and vertical dispersion.
- The compact speaker can therefore always be positioned optimally, even in small or architecturally complex rooms.
