Product Description

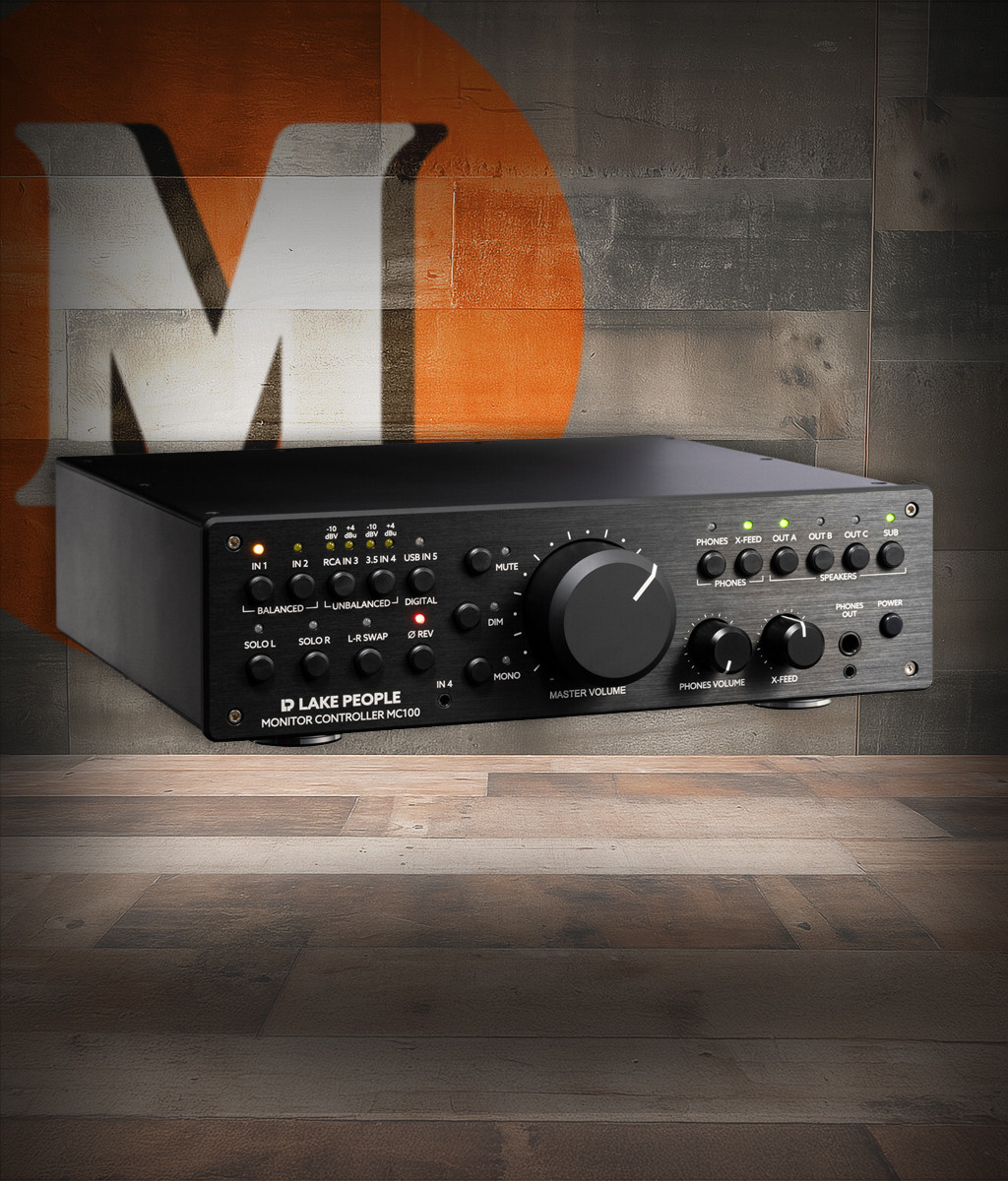

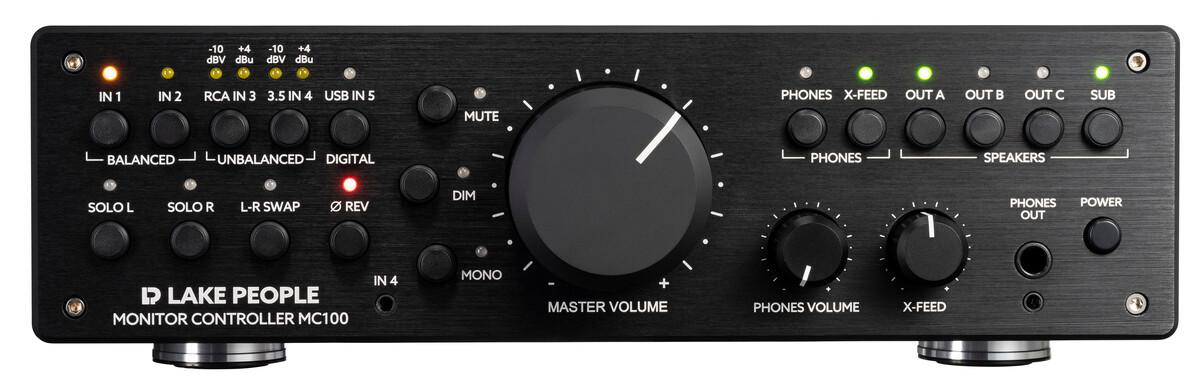

Lake People LP-MC100-PRO Monitor Controller (LP-MC100-PRO)
With its inputs, including a USB input with high-quality D/A converter, 2 slave outputs, 3 loudspeaker outputs plus subwoofer and the headphone path with X-Feed, the Lake People Monitor Controller MC100 PRO offers significantly more than conventional monitor controllers. The complete set of stereo signal manipulation options, Solo L / R, Channel Swap, Phase Reverse, Mono, Mute and Dim function and the high-quality volume control make it stand out from the crowd. In addition, it is as low in noise and distortion as physics allows.
Key Features
- Monitor controller for professional use with extensive features
- High-quality volume control with 50 mm knob
- 256-step relay controlled attenuator
- For controlling 3 monitor pairs plus subwoofer
- USB input with high-quality D/A converter
- Lake People MC100 PRO Monitor Controller
- External Power Supply
- Manual
- technical data
- The inputs are either individually activated via buttons on the front or summed up, active inputs are displayed by LEDs.
- The unbalanced inputs can be set to a sensitivity of -10 dBV or +4 dBu.
- The USB input LED shows PCM signals in green and DSD signals in blue.
- The stereo signal can be extensively manipulated using push buttons.
- The activated state is shown by LEDs.
- These functions include: left or right channel solo, swapping left and rightchannel, inverting the phase of the left channel or switch the signal to mono.
- Dim (-20 dB) and Mute are also present to complete the set of options.
- The rear slave outputs "Slave Out 1" and "Slave Out 2" come as balanced XLR sockets.
- The outputs can also be operated unbalanced.
- Level meters and other devices can be supplied here, bypassing the volume control.
- The rear outputs A, B, C and Sub (Mono) feature balanced XLR sockets.
- The level of all groups may be set to 0, -6, -12 dB by switches on the back.
- The output groups A, B and C can be switched in single mode or in adding-up mode by push buttons on the front panel.
- The Sub output is activated individually, the assignment to the respective group is stored and recalled when the output is activated again.
- The headphone amplifier is activated by a button and has its own volume control.
Specifications
General
- Brand: Lake People
- Product Detail: Lake People MC100 PRO
- Item number: 1008393
- color: black
- SKU: LP-MC100-PRO-U
Power & Performance
- frequency response: 5 Hz - 70 kHz (-0,5 dB)
- power supply: External 16 - 20 V, max. 45 VA
Dimensions & Weight
- dimensions: 290 x 80 x 256 mm (W x H x D)
Additional Features
- X-Feed is activated separately if desired, this effect minimizes the In-Head-Localization when listening through headphones, that means, it simulates a playback by loudspeakers.
- The X-Feed effect is adjusted by a turn pot.
- The headphone amplifier is extremely powerful, headphones with ¼ (6.3 mm) and 3.5 mm jacks can be connected.
Additional Details
- housing form: Desktop
- THD+N (@ -1 dBFs): < -100 dB
- crosstalk: < -80 dB
- Stereo inputs include
- two rear balanced inputs (input 1 and 2) via balanced XLR sockets
- a rear unbalanced input with RCA sockets (input 3)
- an unbalanced input on the front with a 3.5 mm jack (input 4)
- a rear USB input with high-quality D/A converter for PCM signalsup to 384 kHz / 32 bit and DSD 256 (input 5)
- The Volume Control:
- The high-quality RK27 volume control with 41-detent offers a massive 50 mm button.
- It serves toattenuate the three stereo output paths plus the subwoofer (mono) output.
- The Lake People MC100 PRO comes with a 256-step relay controlled attenuator with advantages over conventional solutions in terms of Sound, Crosstalk, Channel Mismatch and Life Cycle.
- The stereo outputs:
