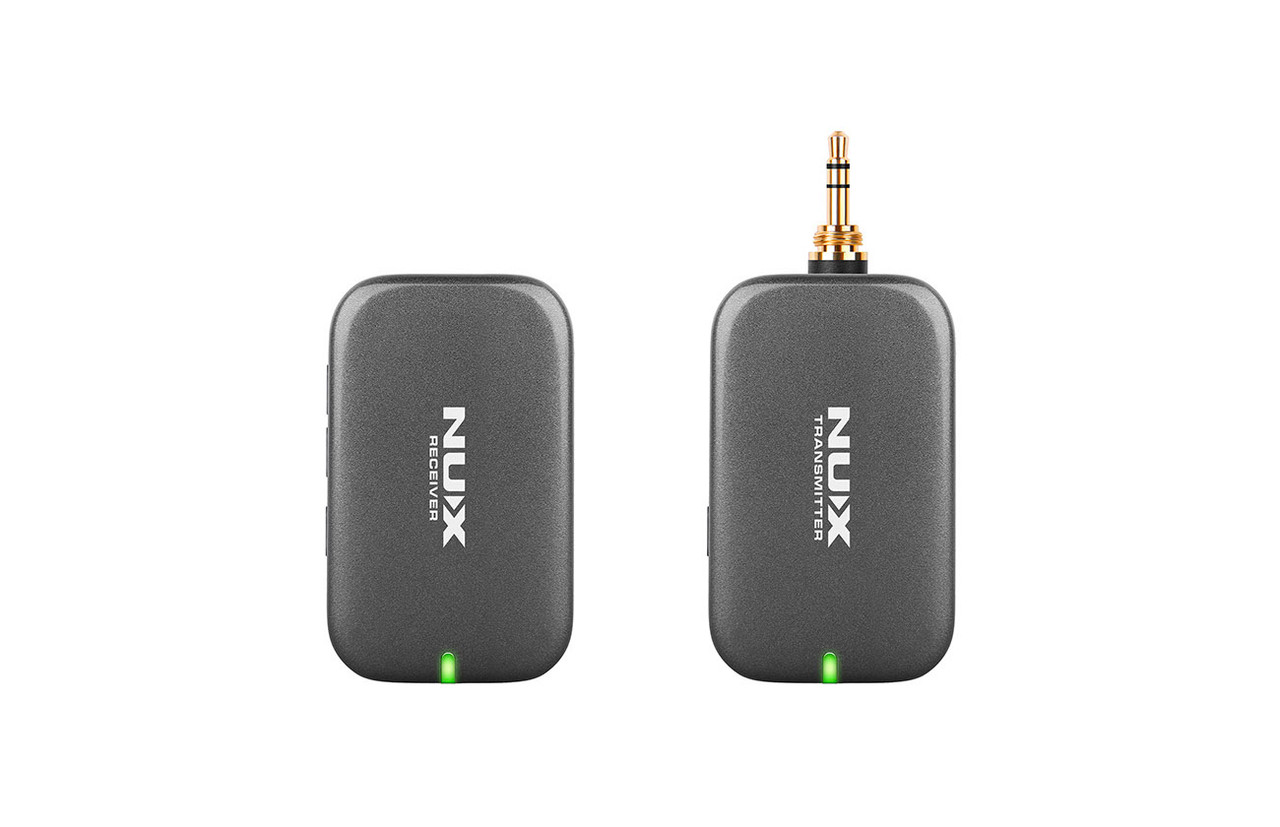

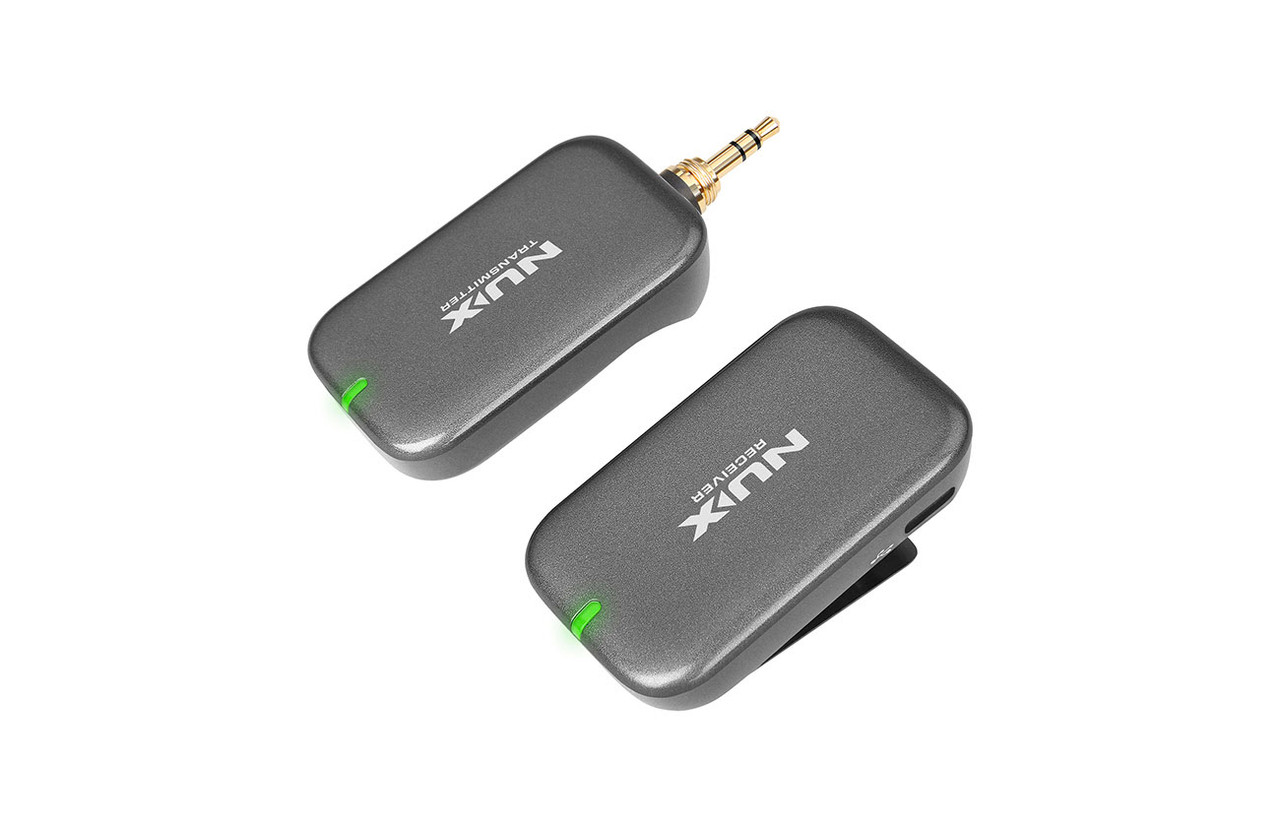

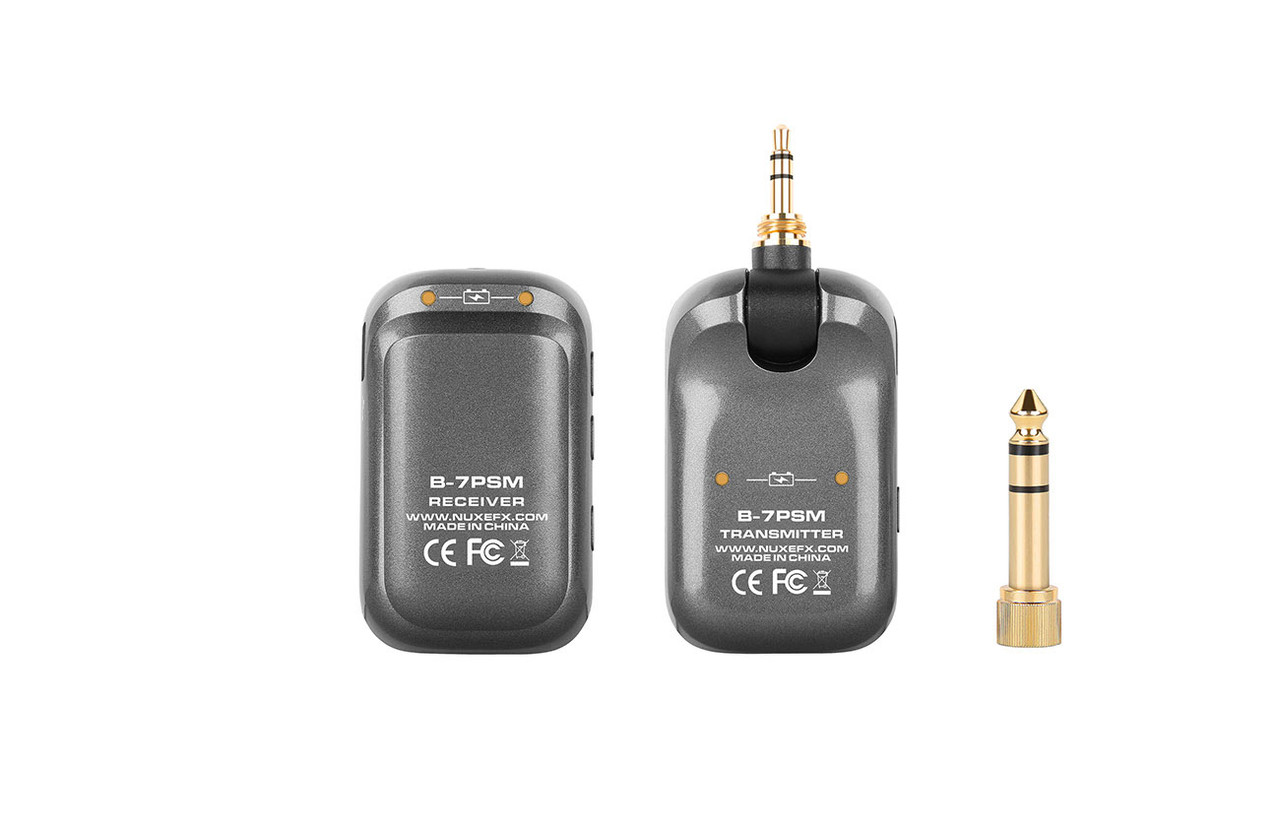

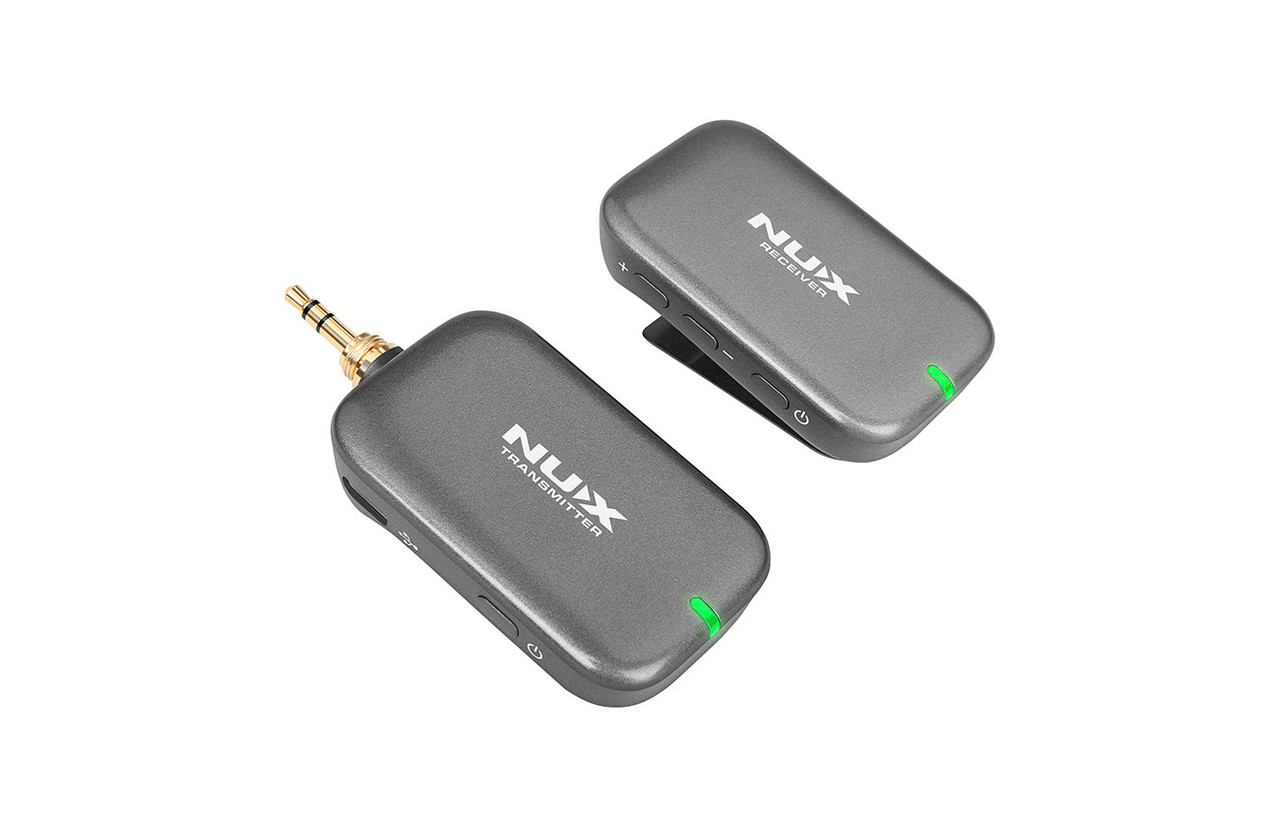

NUX 5.8GHz Wireless In-ear Monitoring System (NUX B7PSM)

The NUX B-7PSM is a wireless personal in-ear monitor system with automatic RF environment scan, 5.8GHz interference-free broadcasting frequency, and 24-bit / 40 kHz high-quality STEREO audio transmitting.

From any position. On any stage. Hear every note in detail with NUX B-7PSM in-ear monitoring system.

– Output Volume Adjustment: –64 dB ~ 0 dB (0.5 dB step)

– Operating Frequency Band: 5.8 GHz

– Transmission Power: <25 mW EIRP

– Operation Range: <100 feet (30 m) outdoor unobstructed / <33 feet (10 m) outdoor with obstructions

– Sampling Rate: 24-bit / 40 kHz

– Frequency Response: 20 Hz – 19 kHz

– Latency: <5.5 ms

– Dynamic Range: 92 dB

– THD + Noise: <0.6% @ 1 kHz

– Built-in Battery Capacity (TX & RX): 3.7 V / 450 mAh

– Battery Life: >4 hours

– Charging Time: Approx. 1.5 hours

– Power Consumption: TX <90 mA / RX <45 mA

– TX Input Impedance: 3.5 kΩ

– Maximum Input Level: 7.6 Vpp (8.6 dBV / 2.7 Vrms)

– Recommended Headphone Impedance (RX): 16 – 32 Ω

– Maximum Output Power: 57 mW RMS (Rload = 16 Ω, 1 kHz)
