Product Description

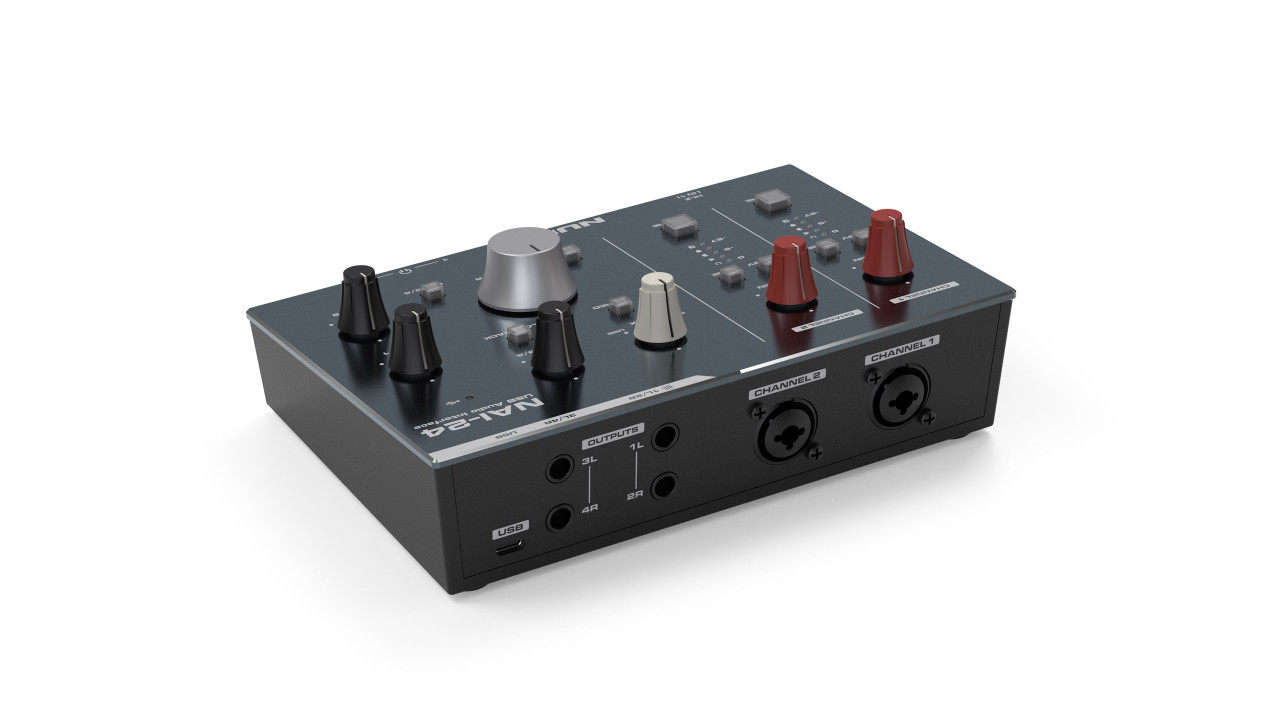

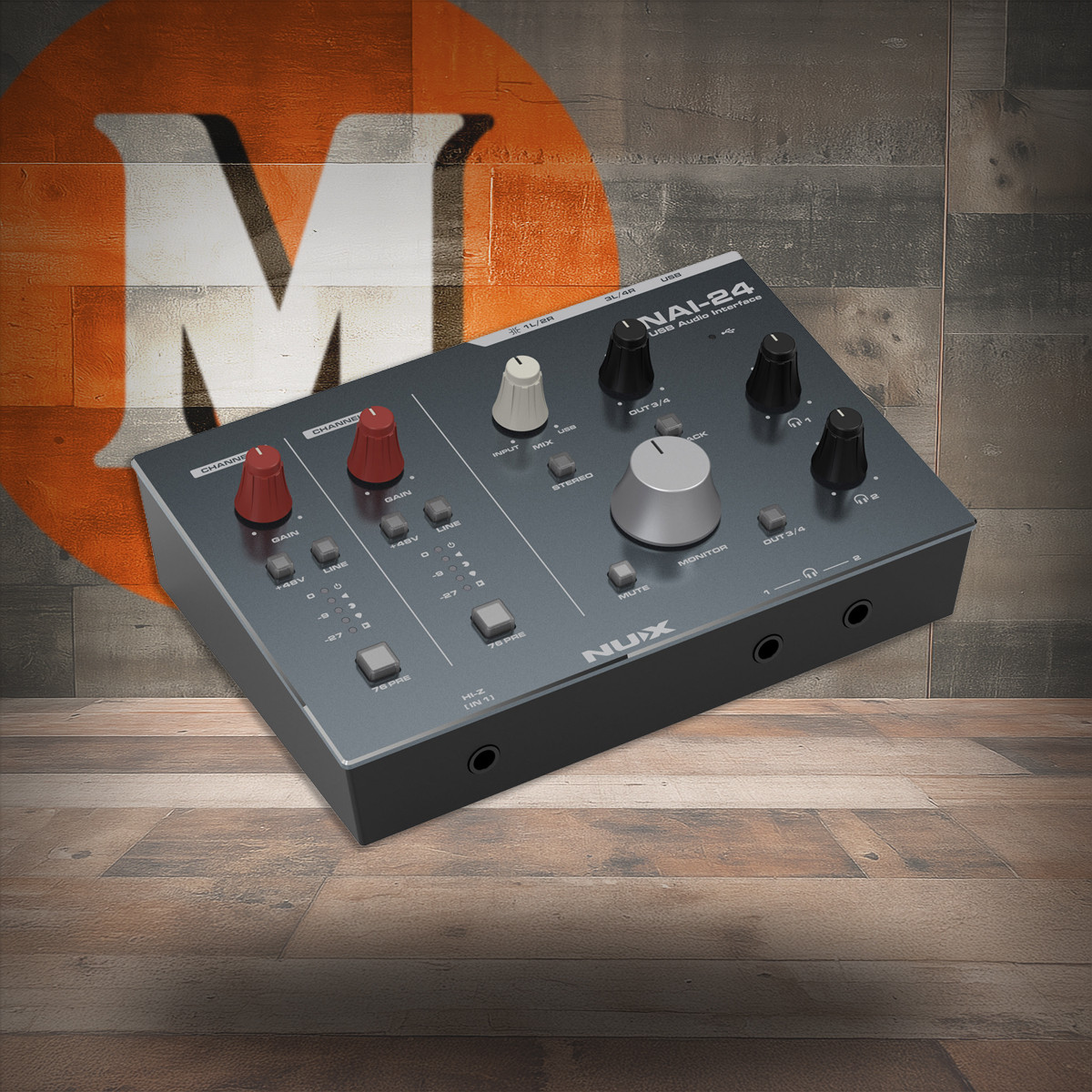

NAI-24 is designed for personal studios, it is compact and equipped with high-quality audio transformers. It features a pure Class A discrete transistor microphone preamp with up to 71dB of gain. Inspired by the classic 76 compressor, it includes a convenient and easy-to-use pure analog compressor. With support for a sampling rate of 32â€bit/192kHz, it allows for switching between two audio interface modes to accommodate different usage environments.
A Tribute to Legends
Utilizing the FET type 76PRE compressor circuit, it employs pure hardware circuits for better tonal quality and offers multiple preset modes through digital control for various applications.The input channel uses high-dynamic pure Class A discrete transistors, achieving a maximum gain of 71 dB. Each input channel has a built-in boost mode and 3 different compression modes.
– 2-in/4-out desktop USB audio interface with support for up to 32-bit/192kHz sample rate.
– Pure Class-A discrete transistor preamplifier delivering ultra-high dynamic range and resolution.
– FET type 76PRE compression circuit with multiple preset modes for various applications.
– Studio-grade audio transformer on Main Output 1L/2R channels for warm, professional sound characteristics.
– Additional 3L/4R output channels for auxiliary output, enhancing versatility in different setups.
– Two high-performance headphone amplifiers with routable channels for customized monitoring.
– USB powered, no external power supply required.
– 48V phantom power with independent on/off control for each channel.
– Ultra-low latency direct monitoring channels for real-time performance.
– Provides stable and reliable signal transmission using high-quality XLR connectors and 6.35mm connectors.
MIC IN
– Dynamic Range: 114dB(A-weighted)
– Frequency Response: 20-20000Hz ± 0.1dB
– THD+N: 0.002%@-1dBFS(at minimum gain)
– EIN: -126dB(A-weighted)
– Maximum Input Level: 6dBu(at minimum gain)
– Gain Range: 5.4-63dB
– Input lmpedance: 2.4kΩ
LINE IN
– Dynamic Range: 114dB(A-weighted)
– Frequency Response: 20-20000Hz ± 0.12dB
– THD+N：0.003%@-1dBFS (at minimum gain)
– Maximum Input Level: 26dBu (at minimum gain)
– Gain Range: -12.6-45dB
– Input lmpedance: 21kΩ
HI-Z
– Nominal input Level: -10dBu
– Input lmpedance: 1MΩ1
L/2R
– Dynamic Range: 112 dB(Balanced, 600 Ω.A-weighted)
– Frequency Response: 20-20000Hz ± 0.5dB
– Maximum Output Level: +12.4dBu(Balanced,0dBFS)
– THD+N: 0.0015%@-1dBFS
– Output lmpedance: 580Ω
3L/4R
– Dynamic Range: 112dB(Balanced, 200kΩ, A-weighted)
– Frequency Response: 20-20000Hz ± 0.1dB
– THD+N: 0.001%@-1dBFS
– Maximum OutputLevel: +18.4dBu(Balanced, 0dBFS)
– Output lmpedance: 240Ω
PHONES OUTPUT
– Dynamic Range: 104dB (A-weighted)
– Frequency Response: 20-20000Hz ± 0.25dB
– THD+N: 0.005%@-5dBFS
– Power Output: 30mW@32Ω
– Dimensions: 194(L)x128(W)x67(H)mm
– Weight: 722g
